SydneyMetroTunnelCompressedAir
A two-year Tier 1 infrastructure program delivering 17 compressed-air plant rooms and over 50,000 metres of stainless steel line for tunnel ventilation control.
Project Overview
Project Context

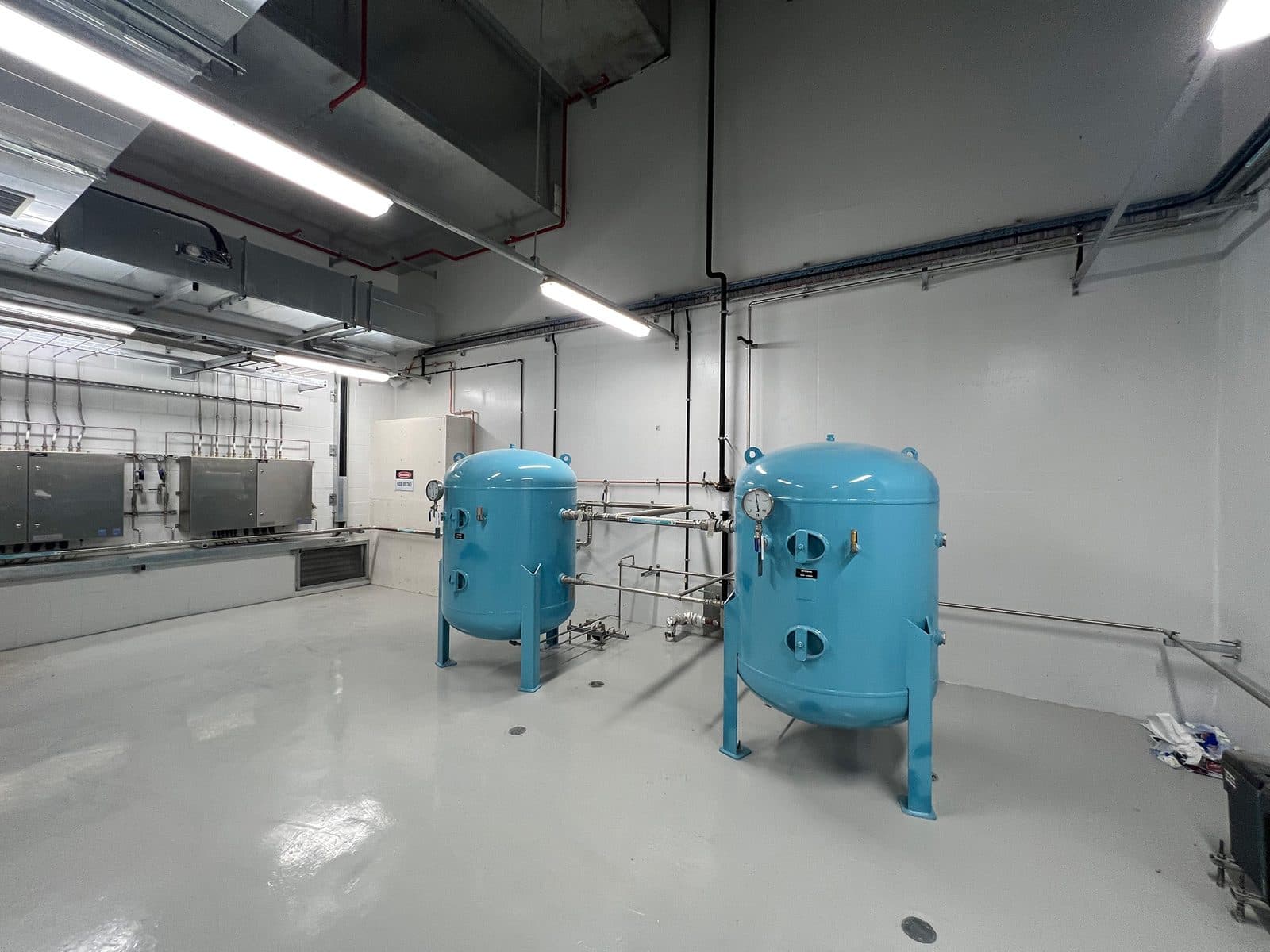

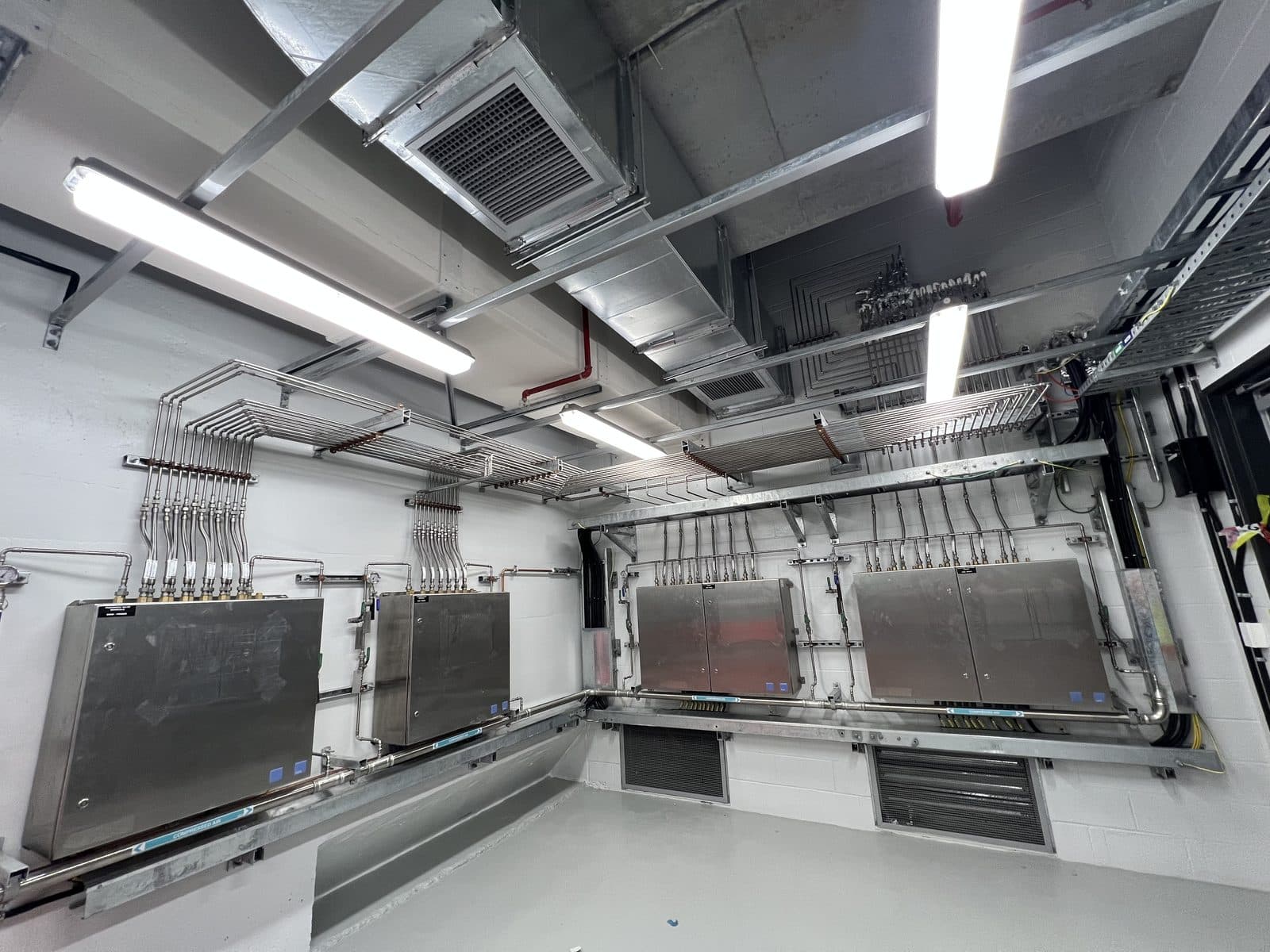

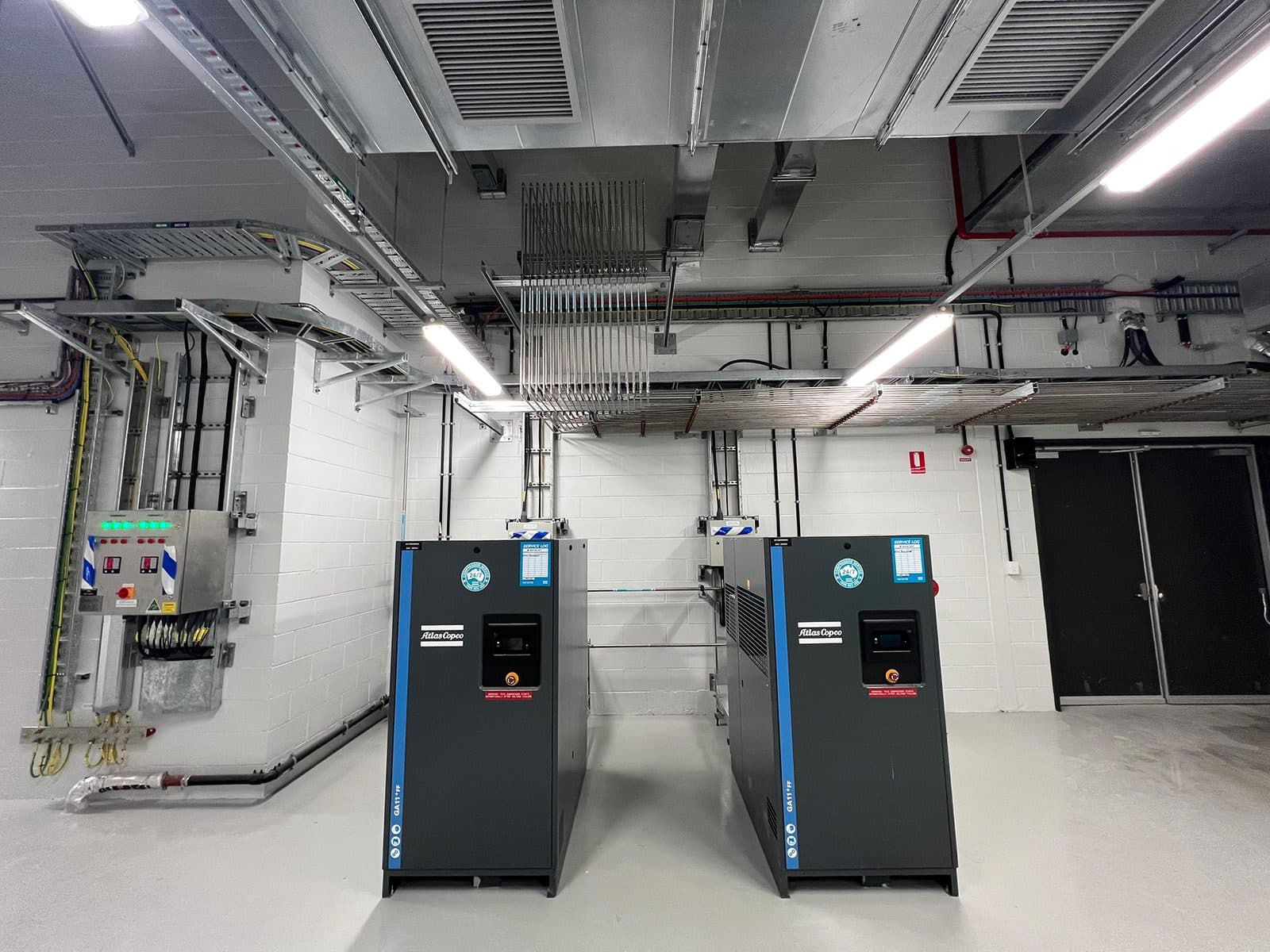

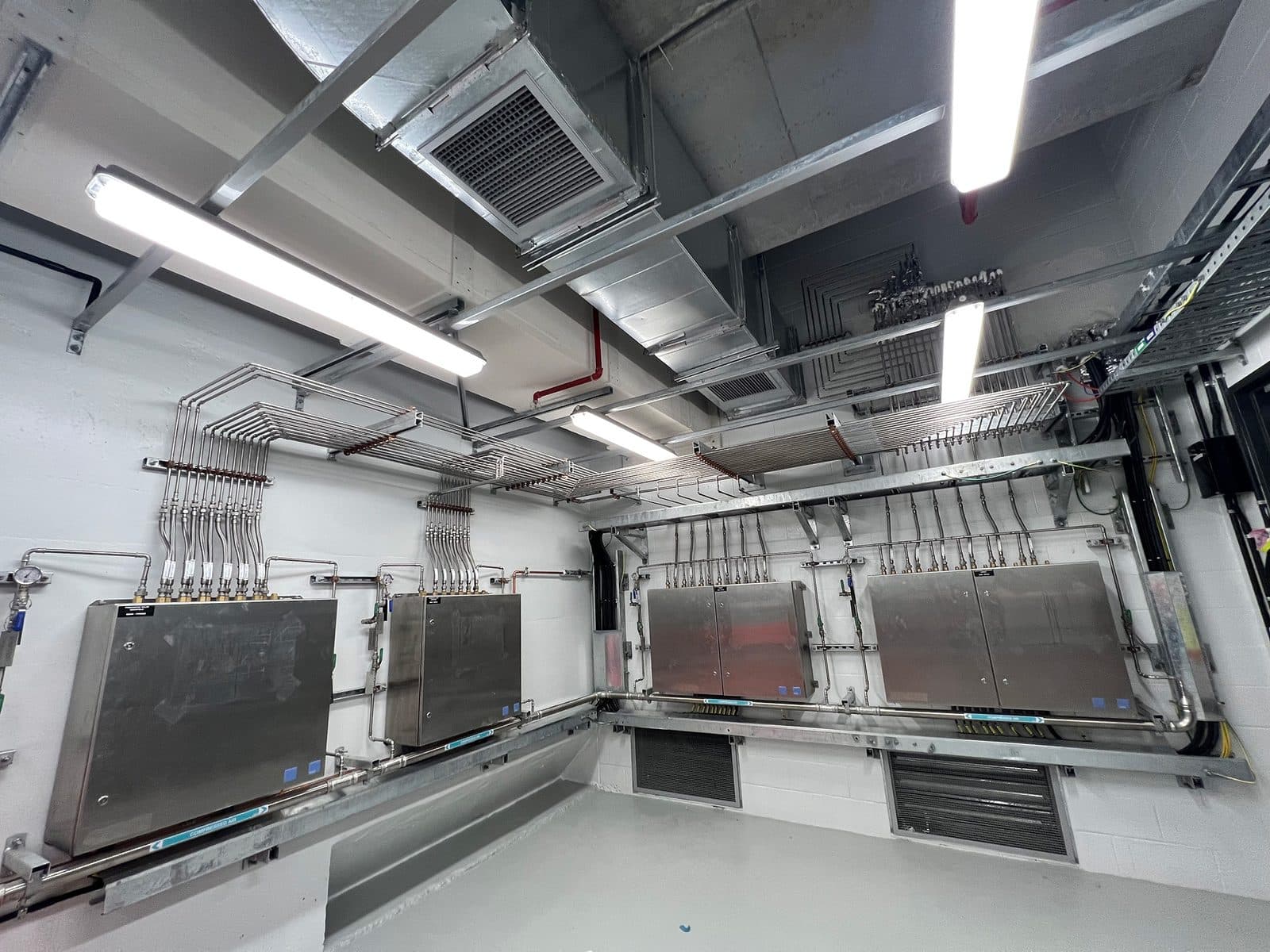

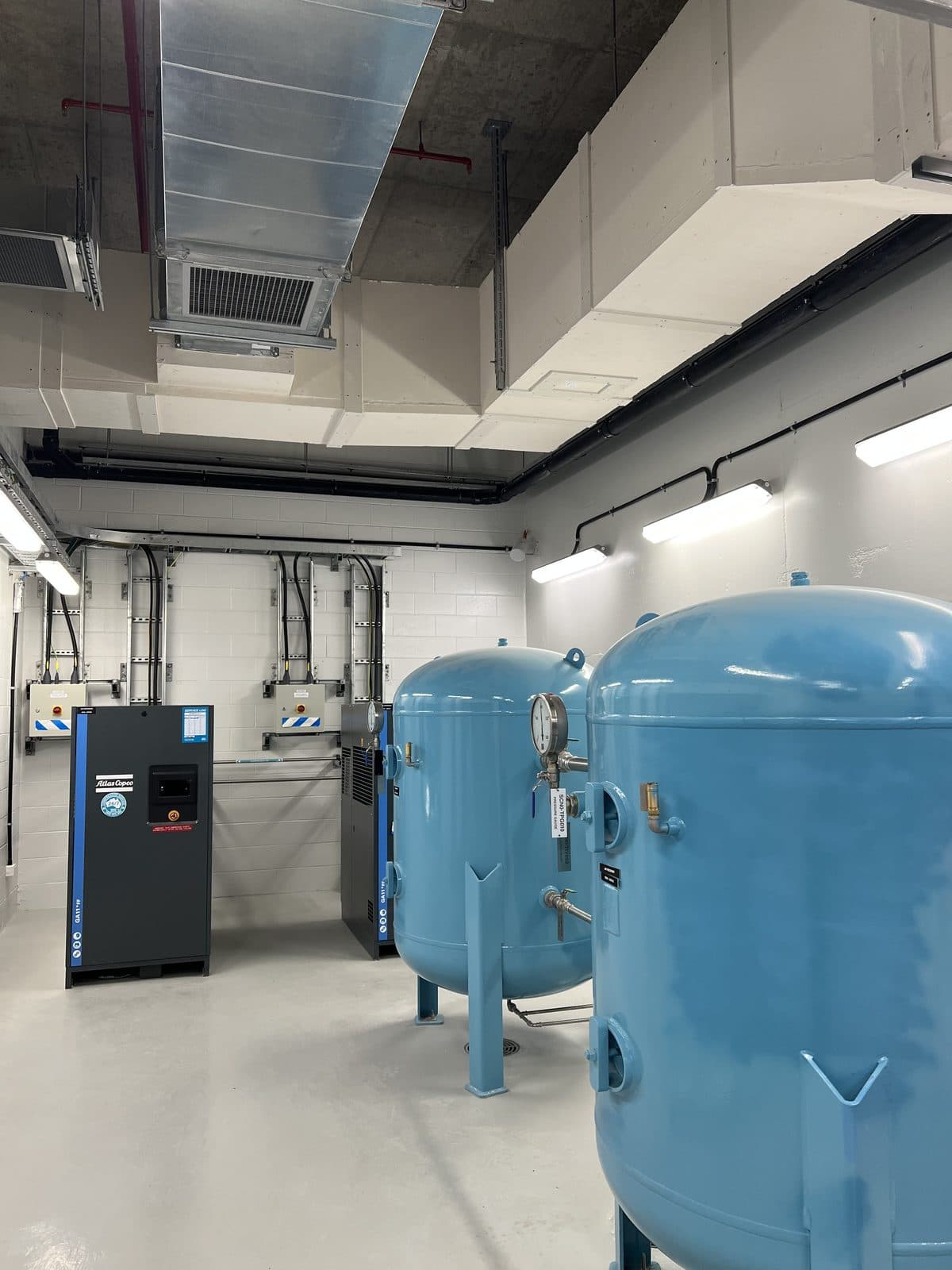

Goldman Plumbing Services installed the 17 individual compressed air systems required for the tunnel ventilation system throughout the Sydney Metro City & Southwest Line project. The systems were distributed across 17 plant rooms, each containing two compressors, two air receivers and a selection of pneumatic control panels.
Technical Scope

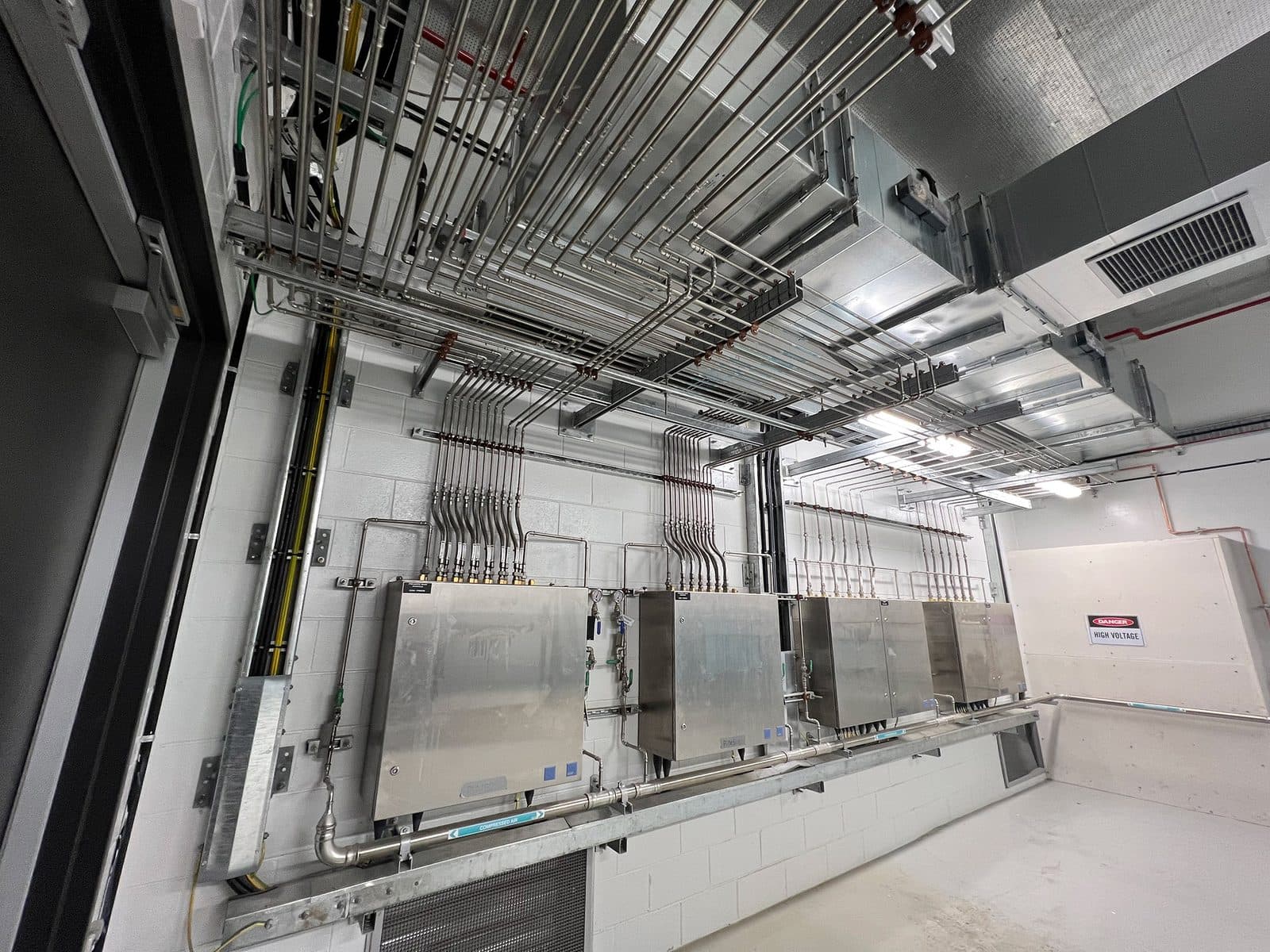

The compressed air operates the damper actuators that control the tunnel's air flow through separate ventilation zones. The installation required over 50,000 metres of stainless steel compressed air pipework.
Outcome & Handover
Goldman Plumbing worked as a contractor to Systems Connect Linewide, a CPB Contractors and UGL Engineering joint venture, on behalf of NSW Infrastructure. The team boosted productivity to meet Sydney Metro's acceleration targets as required, completing the works in November 2023.
Reliable Compressed-Air Control for Tunnel Ventilation
Infrastructure
17 compressed-air plant rooms
50,000 m stainless steel
2 years, completed 2023

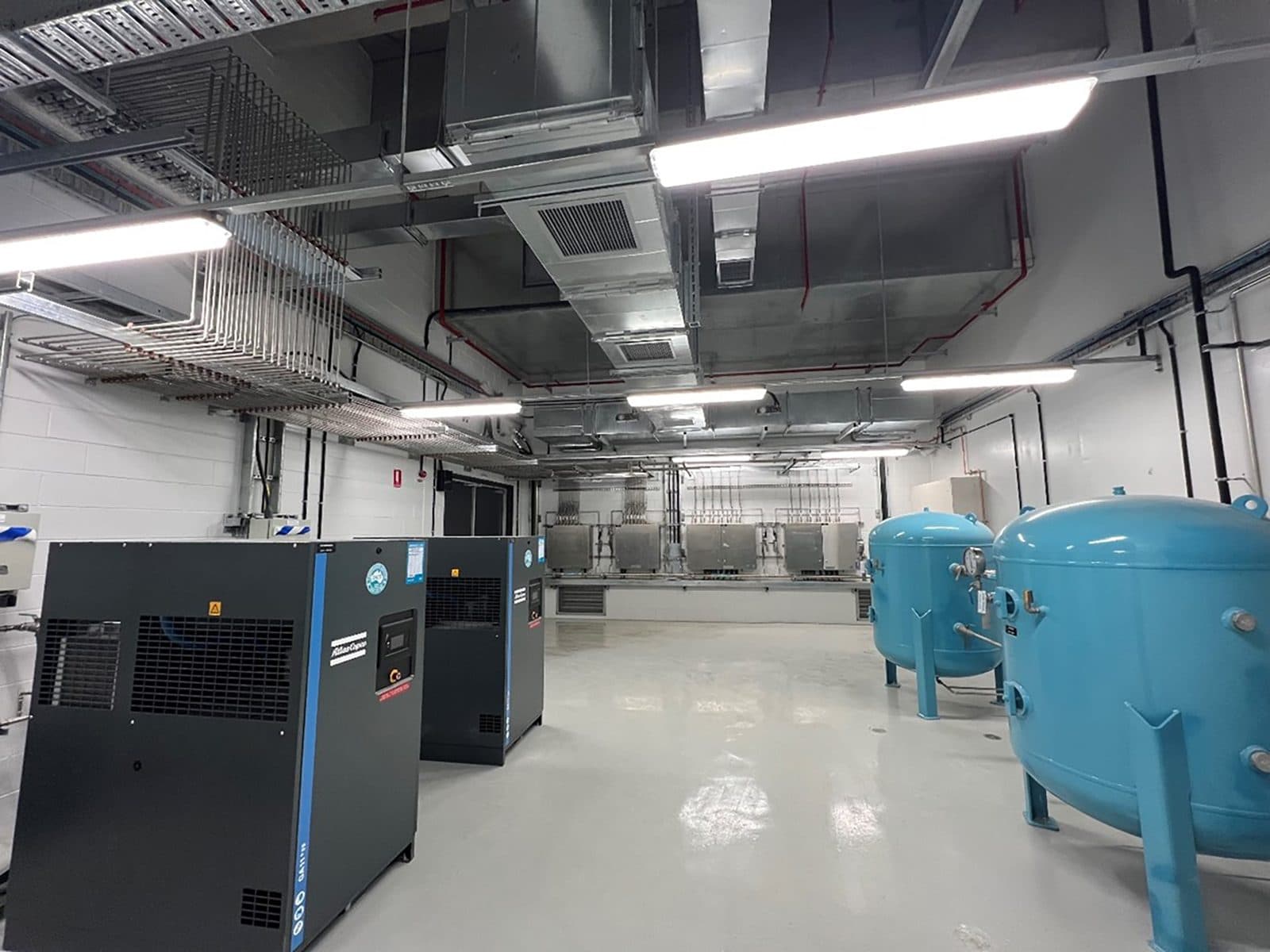

Compressed air plant room - one of 17 across the metro line
